Crossfire eVo F3B/F3F
CROSSFIRE eVo ( F3B : single carbon )

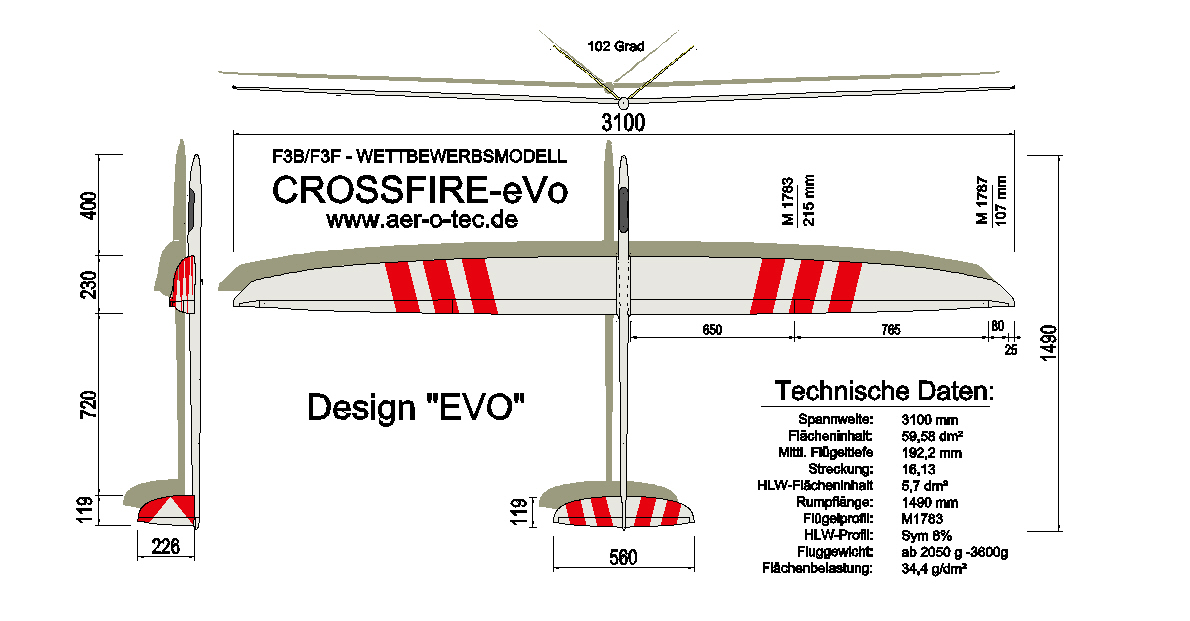

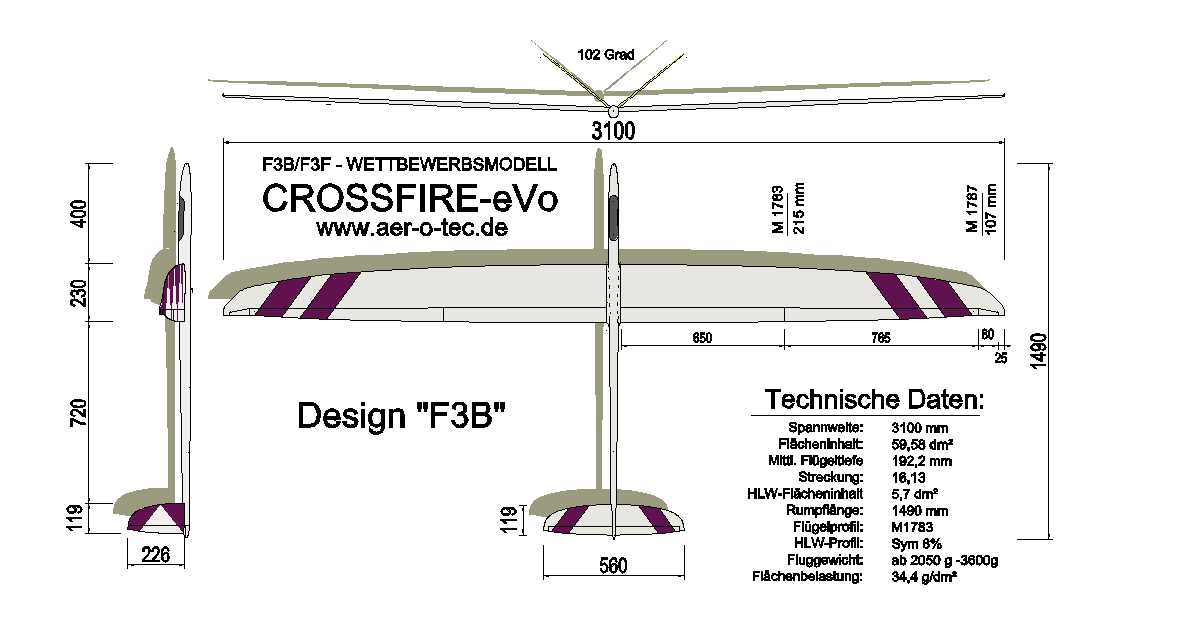

TECHNICAL DATA :
| span: | 3100 mm |
| wingarea: | 59,58 dm² |
| avar. chord: | 192,2 mm |
| aspect ratio: | 16,13 |
| weight: | ca. 2050 g |
| v-tail area: | 5,70 dm² |
| length: | 1490 mm |
| wing airfoil: | M1783 |
| stab airfoil: | Sym M8% |
This is the latest version of our successful F3B-WC-winning competition glider Crossfire :

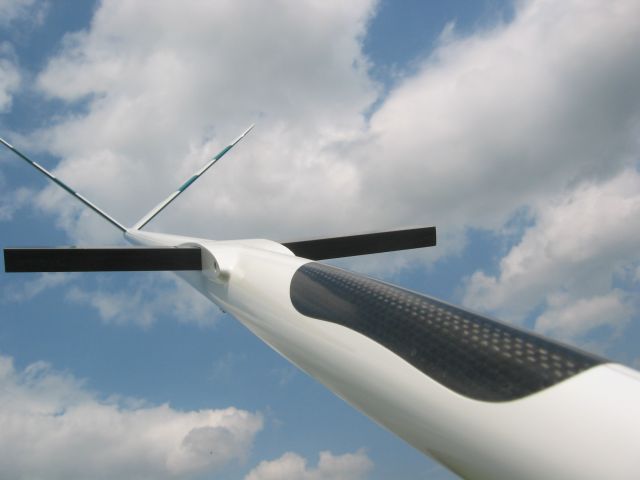

New full carbon fuselage with longer tail boom and v-tail angle of 102 degrees.
new flap and aileron geometry with additional giga-flaps.
wing prepared for rds-systems ( available optional )we deliver also several servo frames...!
new design of carbon canopy for better handling when holding the model in front of wing.
available in standard f3b lay-up ( 80g carbon ) or double carbon ( 80g +68g carbon layers or 68&68 carbon for ultimate f3b performance )
all the proven features of CROSSFIRE combined with the latest experience from f3b-competition !
Crossfire eVo electro
Our latest F3B-glider Crossfire eVo can be modified for electric power also. See articles and detail at RC-Network as well - Darius Mahmoudi did a lot of flying and provided us with some pictures:
Futaba-2.4-FASST-System is working well in standard carbon fuselage:
Crossfire eVo : in action........
First competition results 2008 :
